Canterbury Cathedral
Click on the photos to enlarge them.

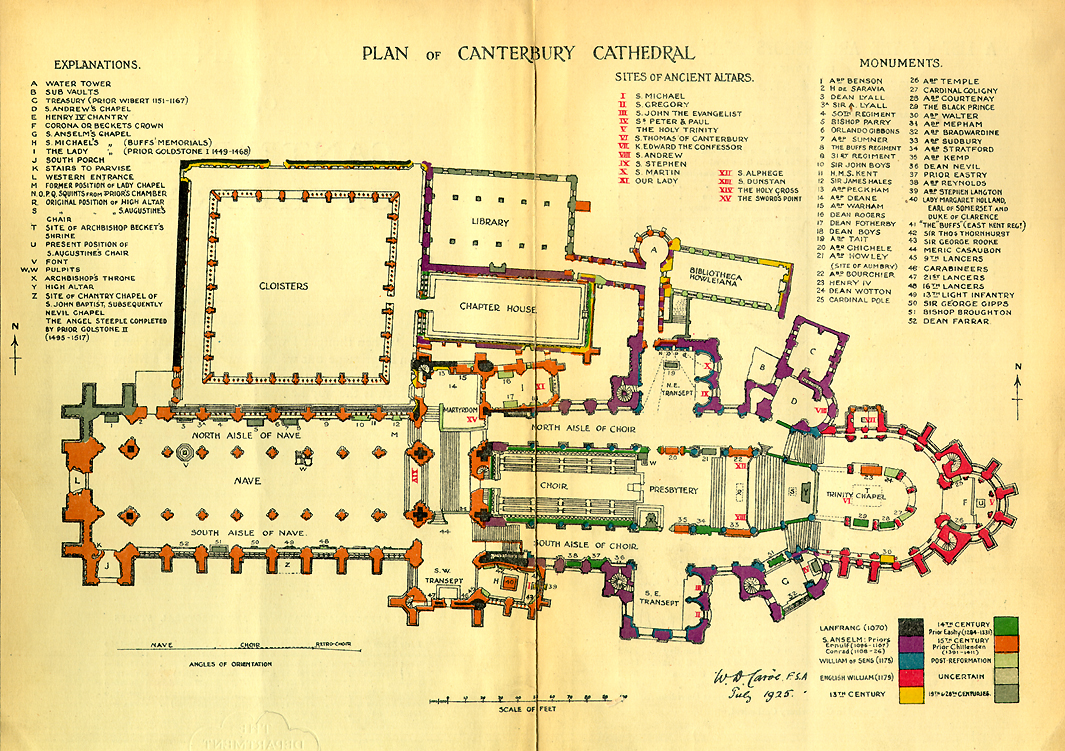

Canterbury Cathedral,

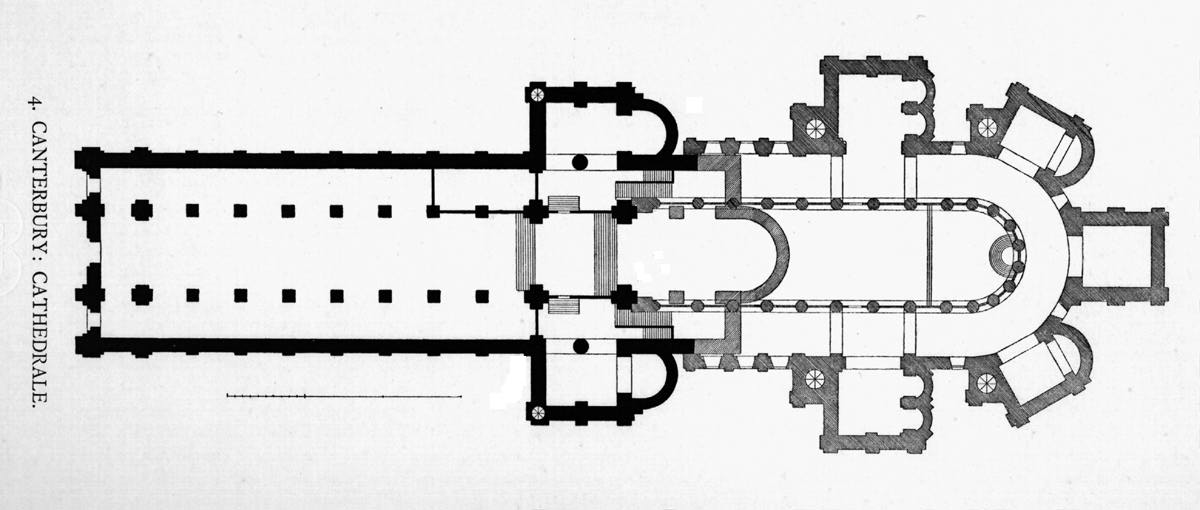

plan on medart.pitt.edu
Canterbury Cathedral, plan on medart.pitt.edu
Plan from Dehio and von Bezold
.jpg)
Plan
DUMONT, Die großen Kathedralen.

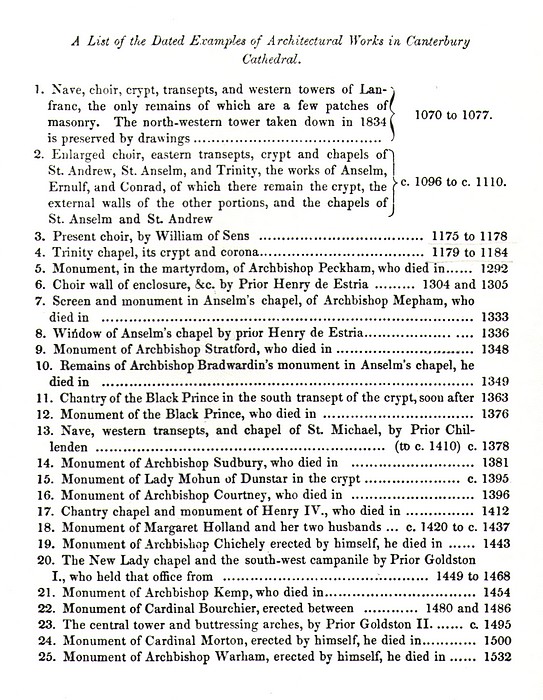

List of the Dated Examples of Architectural Works in Canterbury Cathedral,
from Willis

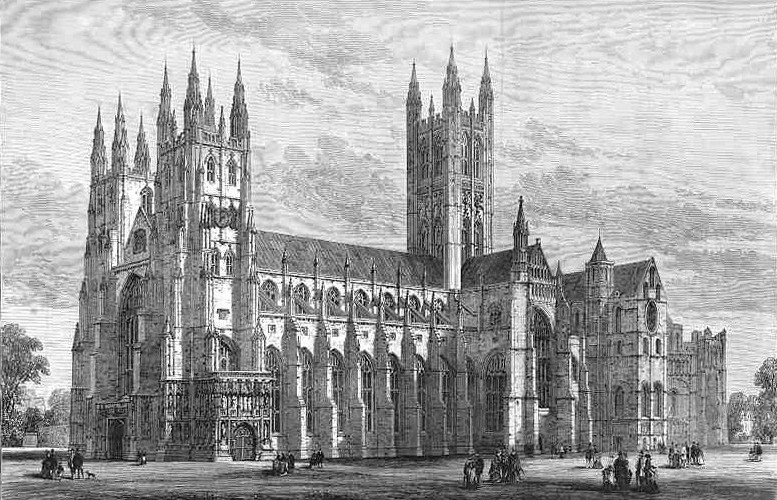

,1.jpg)
,2.jpg)
,3.jpg)
Building dates from John Harvey, Cathedrals of England and Wales. pp. 220-221

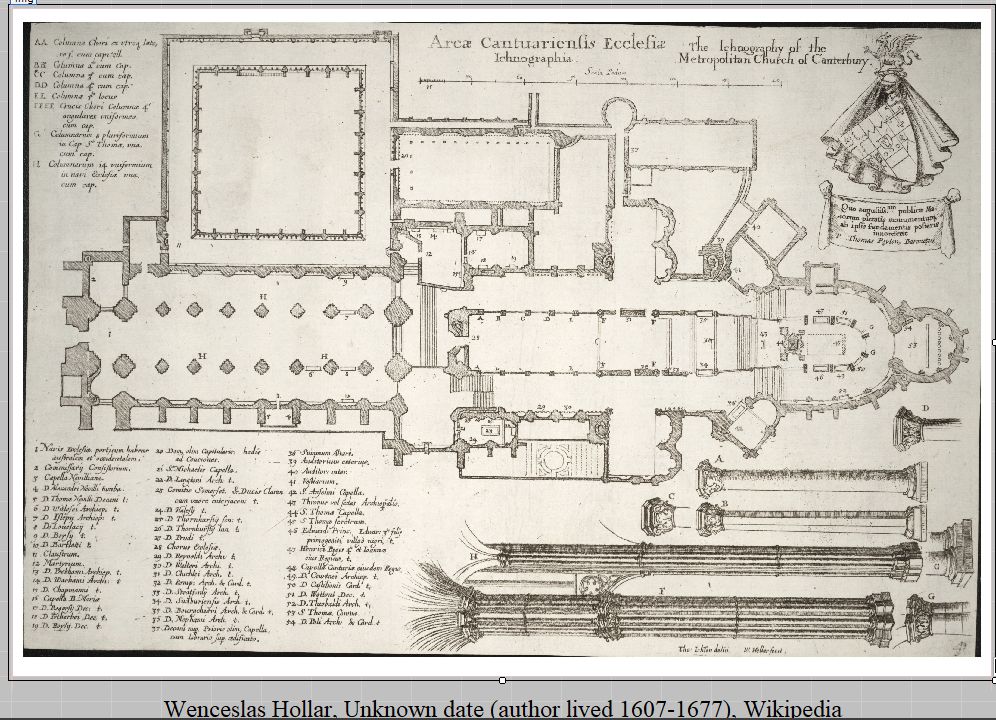

Canterbury Cathedral, Ground plan

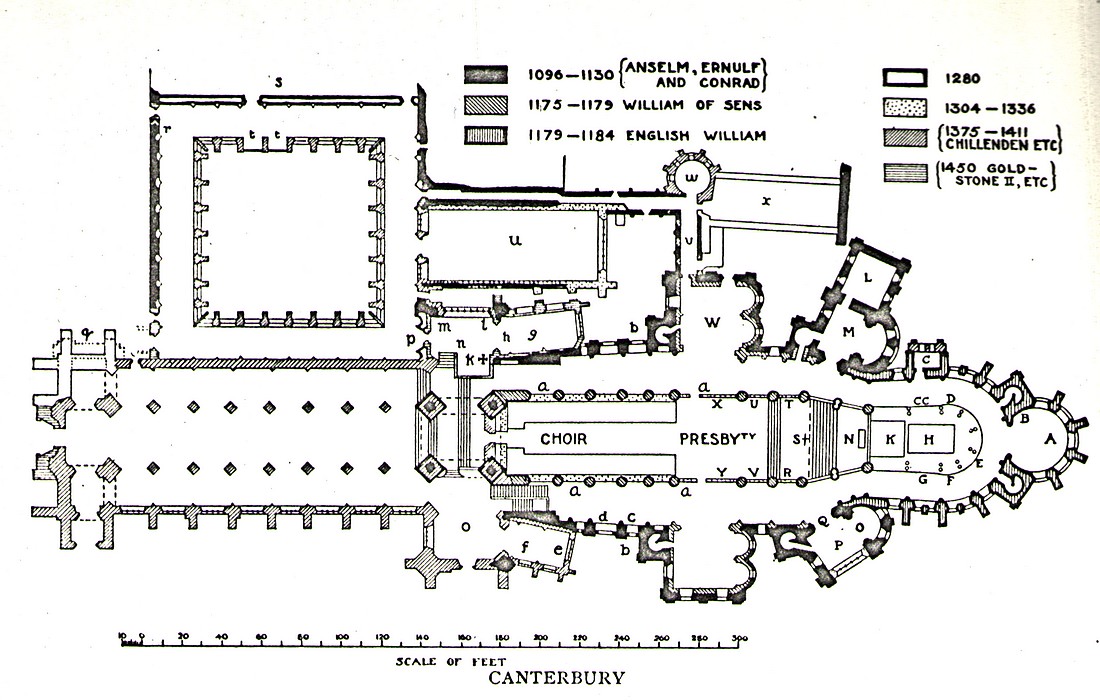

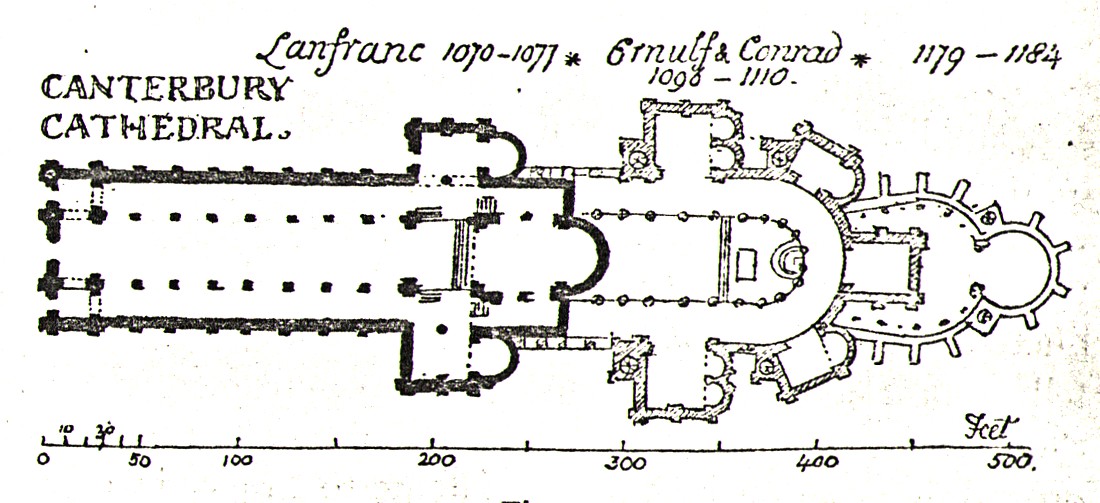

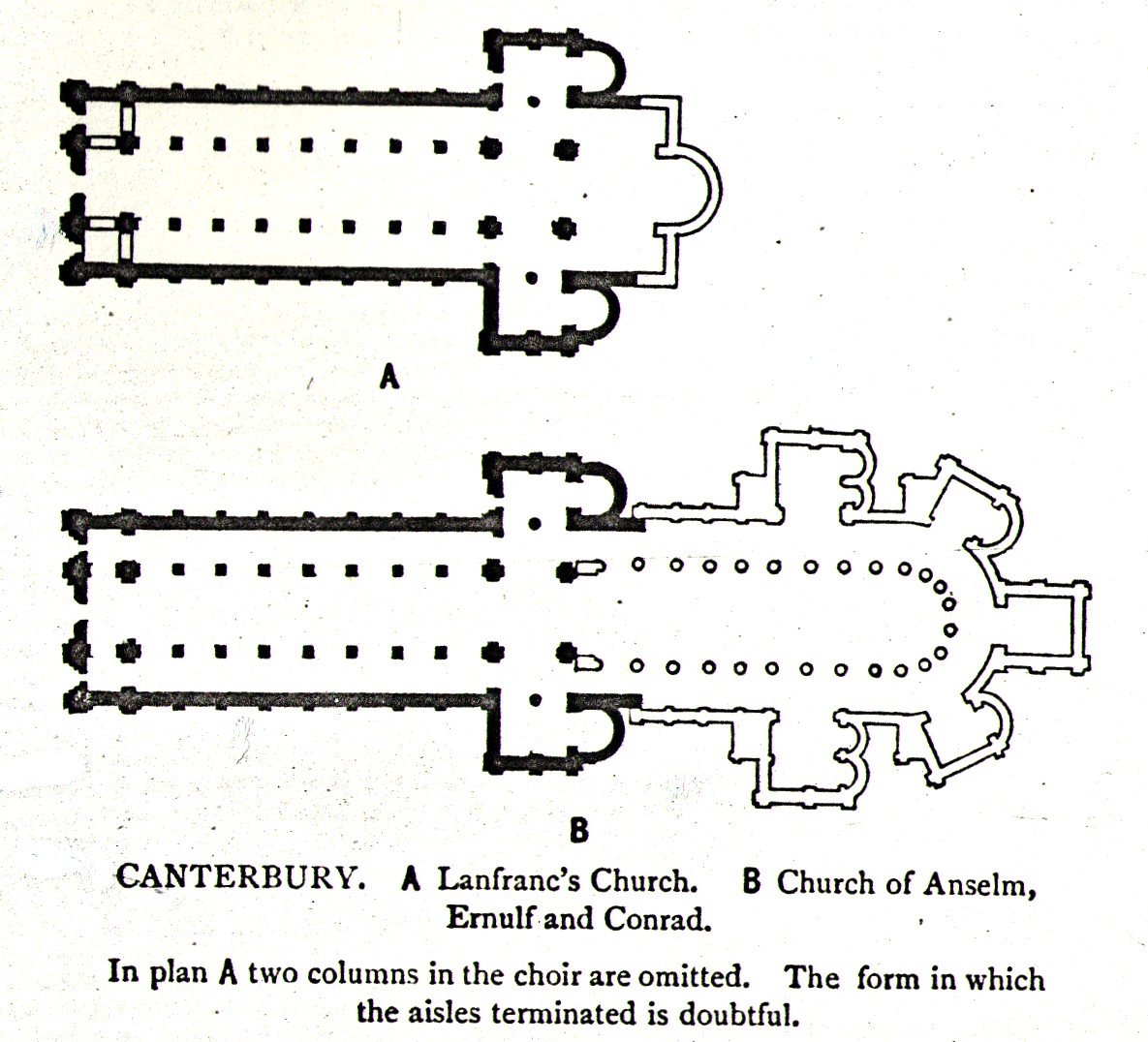

Canterbury Cathedral, Ground plan of Lanfranc's Church and Church of Anselm, Ernulf and Conrad, from Atkinson
Canterbury Cathedal, Ground plan and text from Atkinson

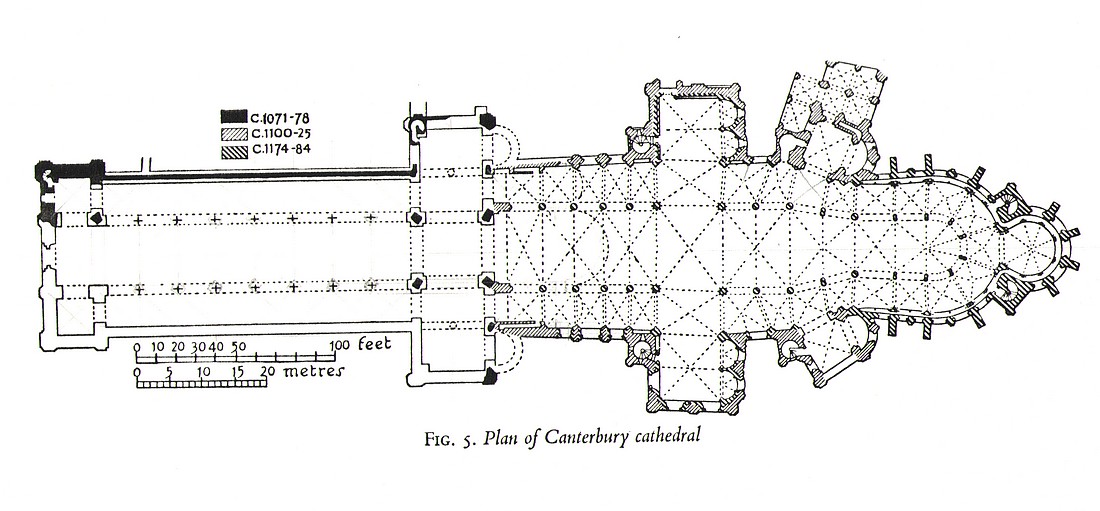

Canterbury Cathedral, Ground plan, from Boase

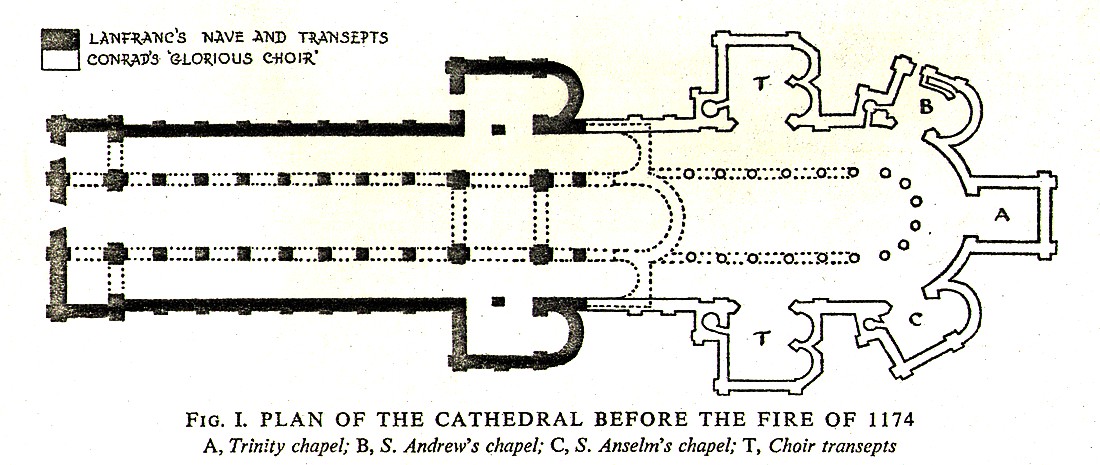

Canterbury Cathedral, Ground plan, from Cook

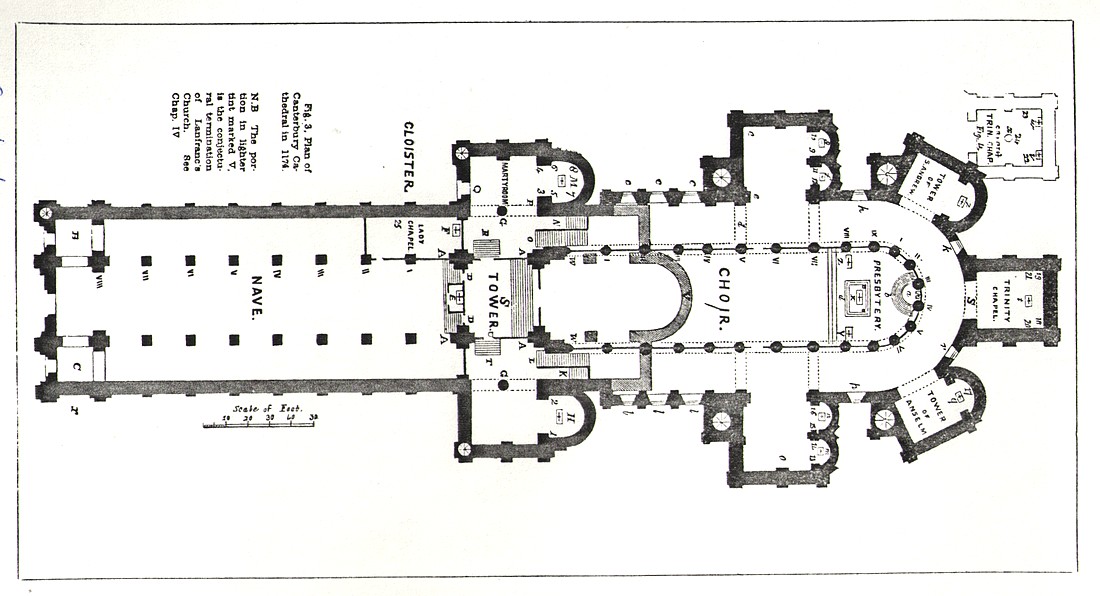

Canterbury Cathedral, Ground plan, from Willis

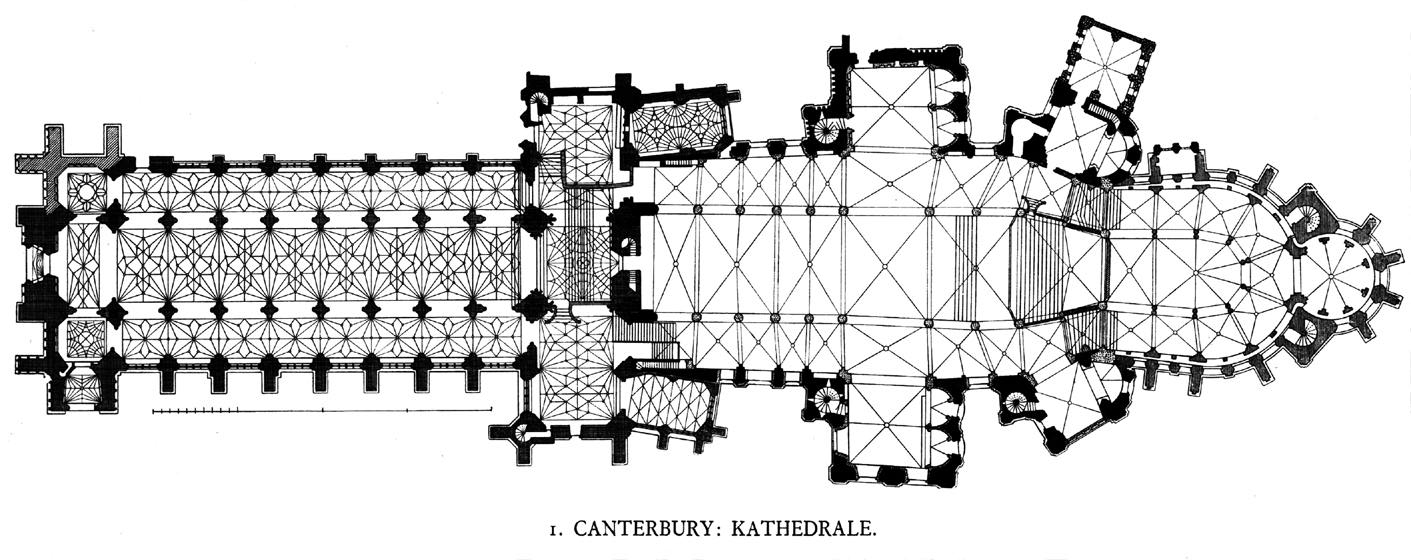

Plan by plan by Dehio
and von Bezold

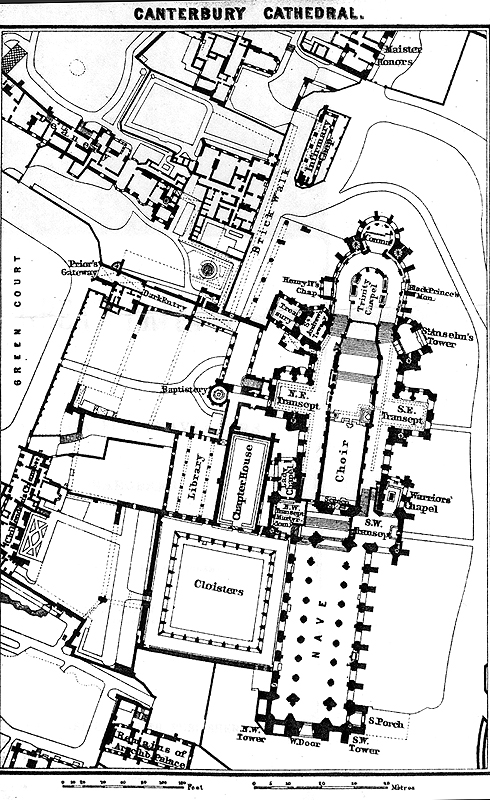

on medart.pitt.edu
%20of%20the%20eastern%20parts%20after%20fire.jpg)
Canterbury Cathedral,
Ground plan,
Rebuilding (1174-85) of the eastern parts after fire

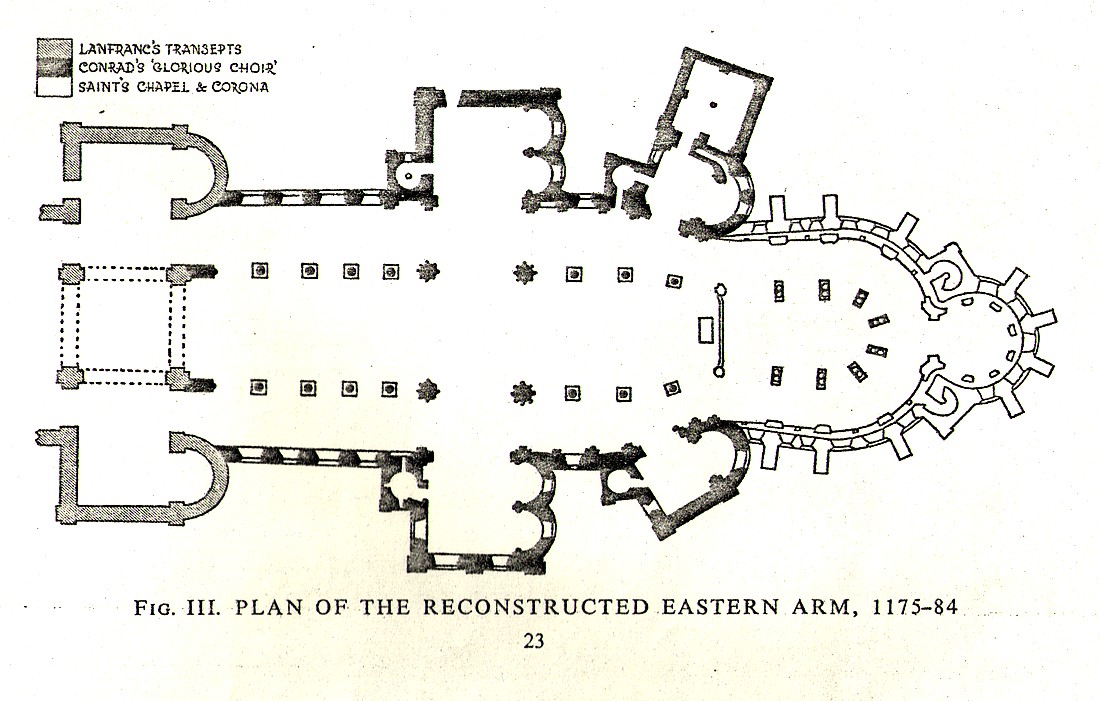

Canterbury Cathedral, Ground plan of the reconstructed eastern arm, 1175-84, from Cook

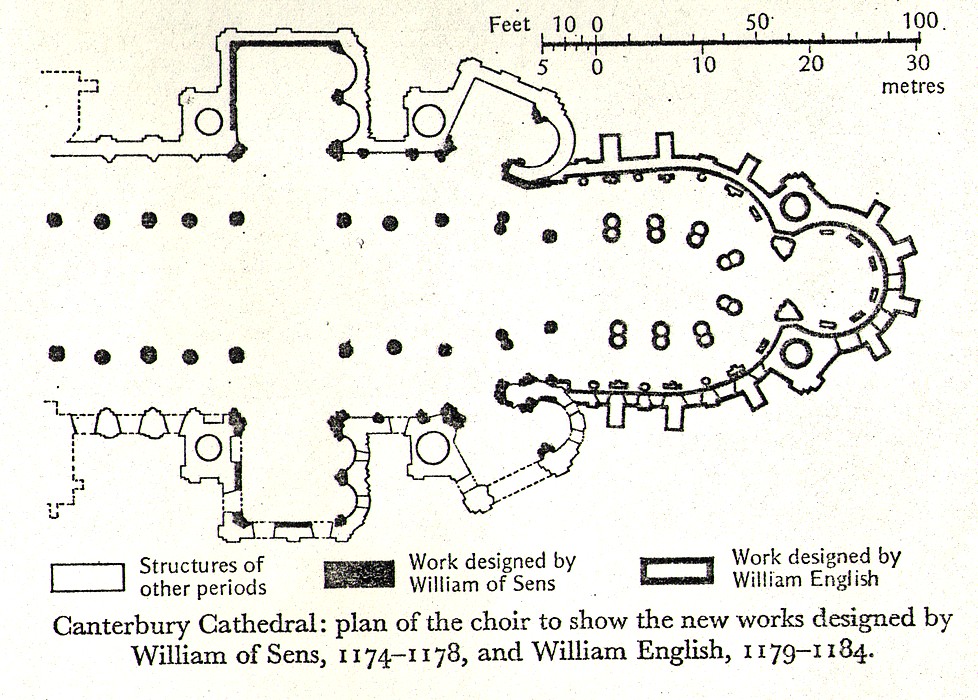

Canterbury Cathedral, Ground plan, from Harvey
Canterbury Cathedral, Ground plans, from West

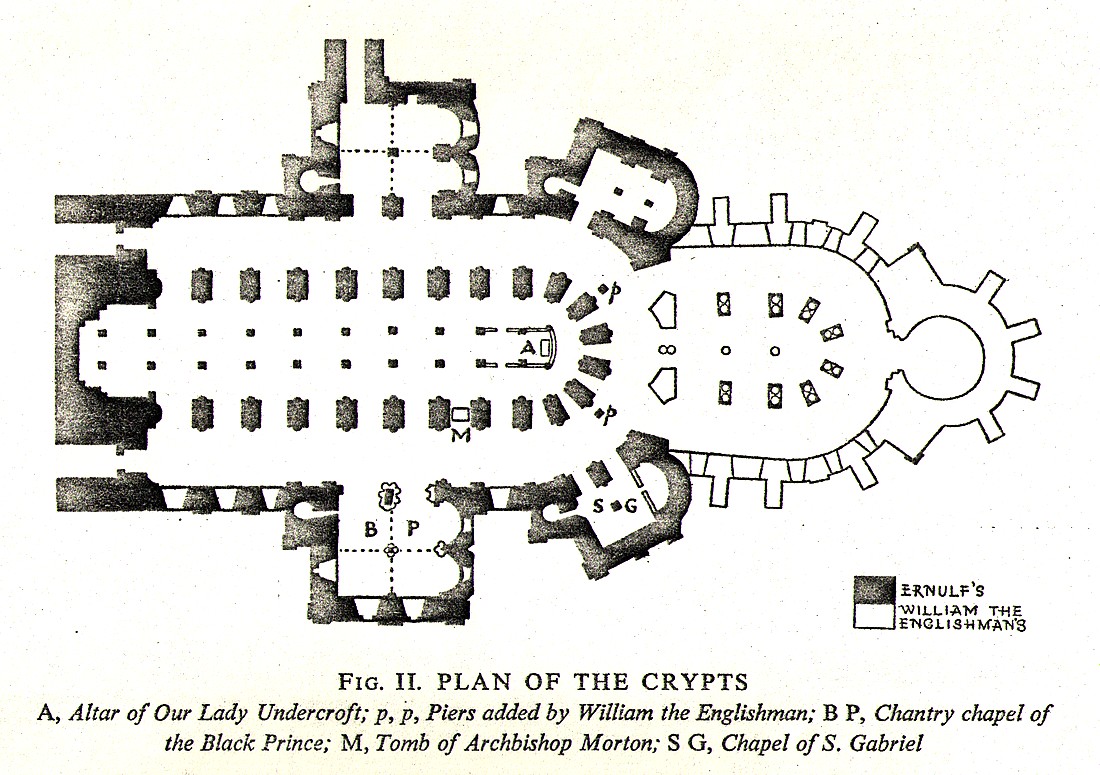

Canterbury, Plan of the Crypts, from Cook
,%20Salisbury%20(12),%20Toledo%20(13),%20(Guenther%20Binding,%20Hochgotik,%20S.%2088).jpg)
Canterbury (11),
Salisbury (12), Toledo (13),
(Günther Binding, Hochgotik, S. 88)

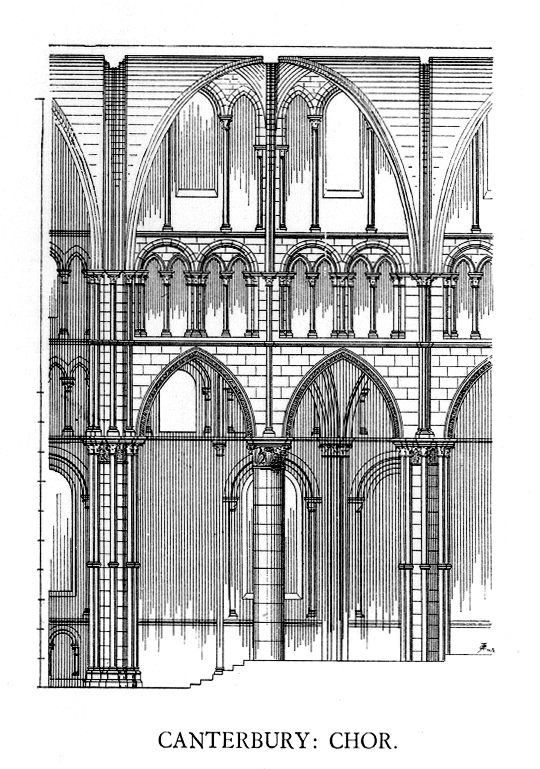

Elevation from Dehio and
Bezold,
on www.medart.pitt.edu

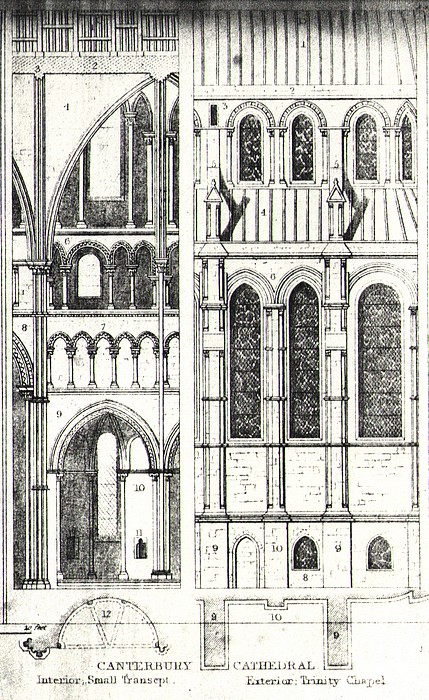

Canterbury Cathedral, Interior East Transept and Exterior Trinity Chapel, from Parker.

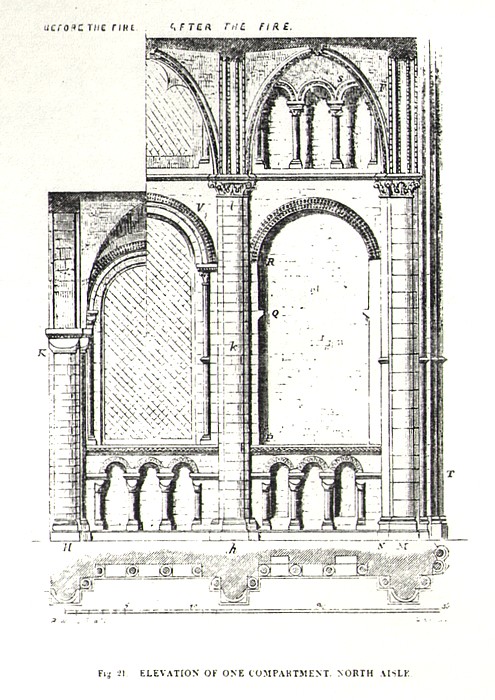

Canterbury Cathedral, Elevation North Aisle, before and after the fire, from Willis.

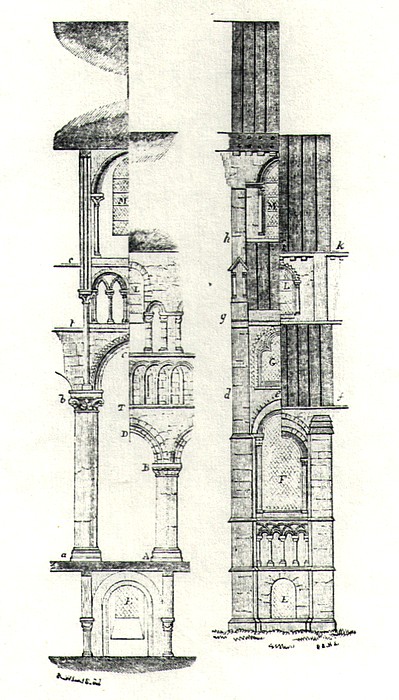

Canterbury Cathedral, Norman and Gothic design,from Willis

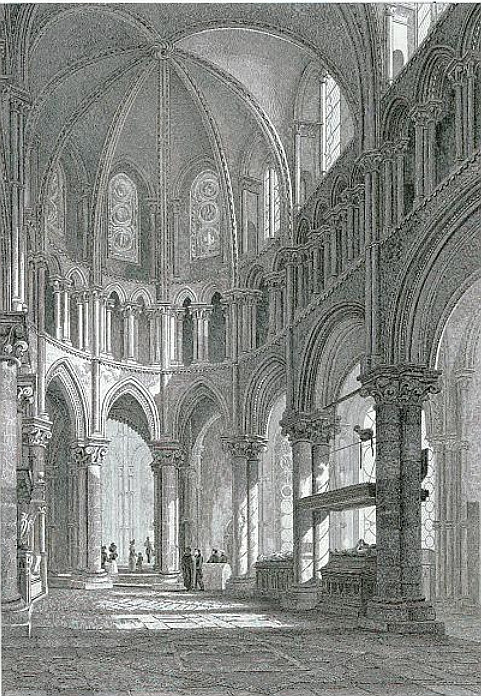

Canterbury Cathedral,
Trinity Chapel,
by J. Lambert after a drawing by G.Cattermole,
published in Britton's Cathedral Antiquities of Great Britain, 1830.,
on ancestryimages.com

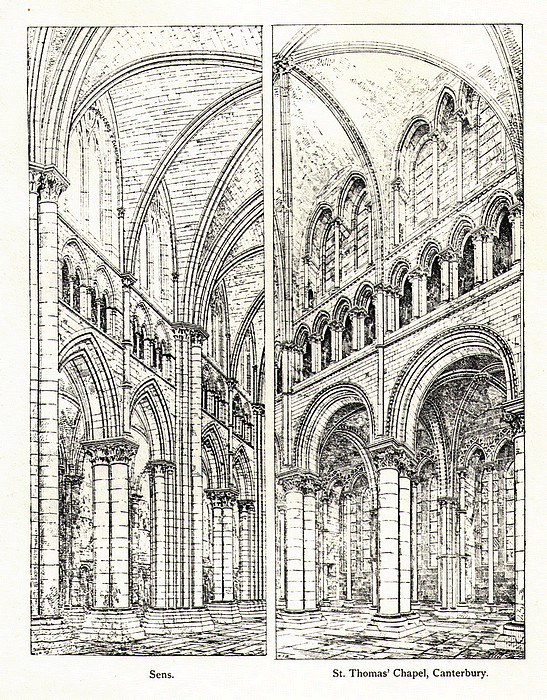

Canterbury Cathedral and Sens Cathedral, from Bond

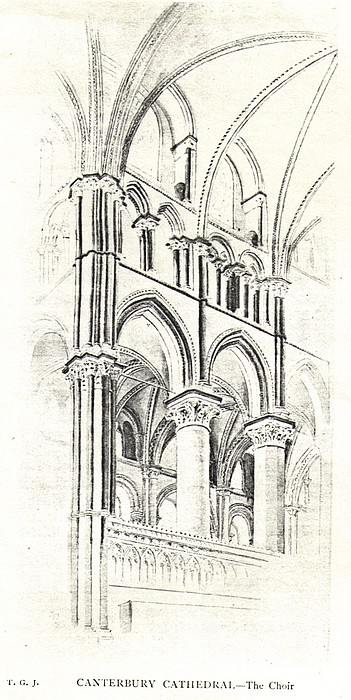

Canterbury Cathedral, Choir, from Jackson

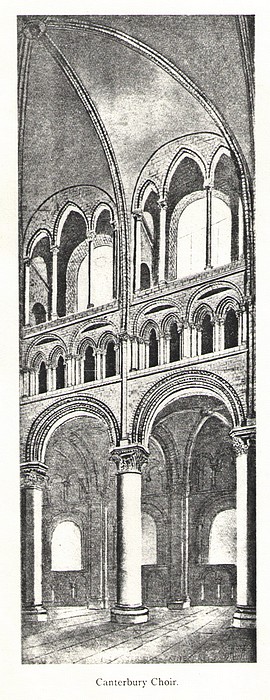

Canterbury Choir, from Bond
Canterbury Cathedral, Section, Transept and elevation of the West side of south Transept, from Britton

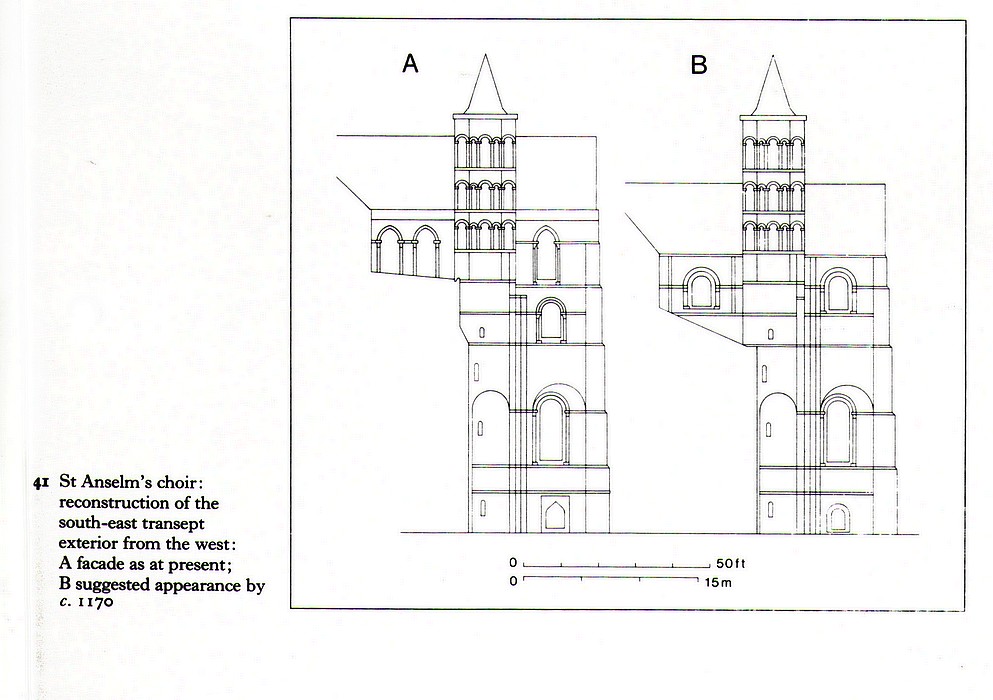

Canterbury Cathedral, from Woodman

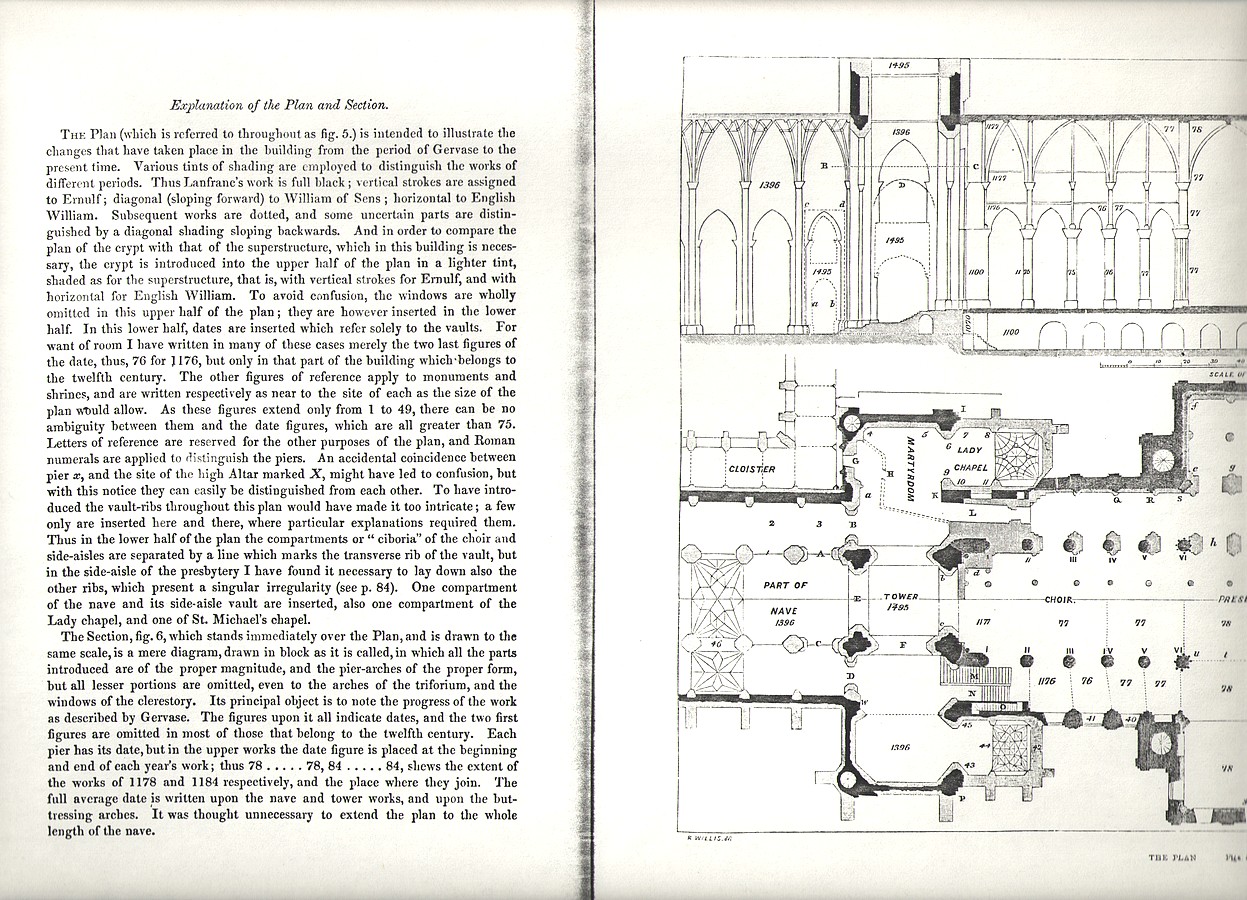

Canterbury Cathedral, Plan and section with explanation, from Willis
Canterbury Cathedral, Section, from Britton

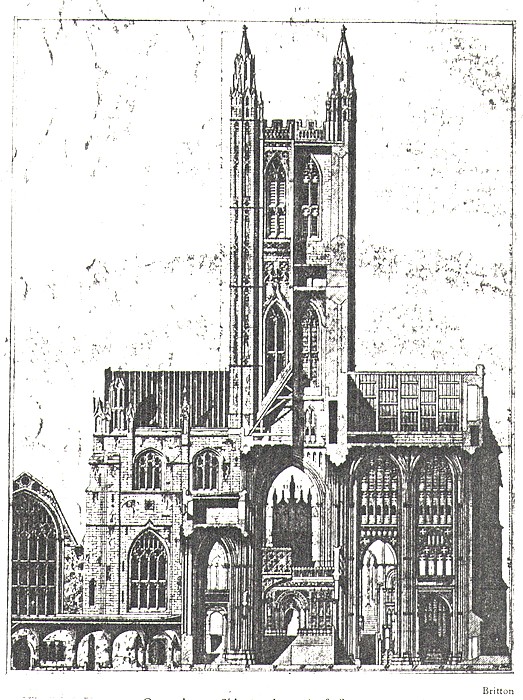

Canterbury Cathedral, Crossing, from Britton

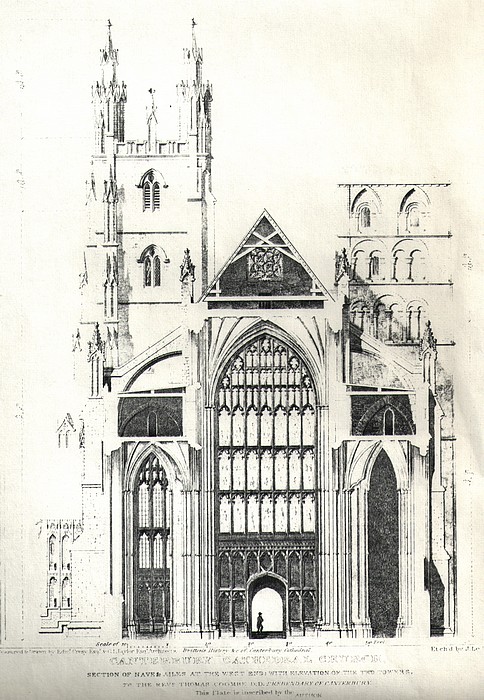

Canterbury Cathedral, Nave, from Britton

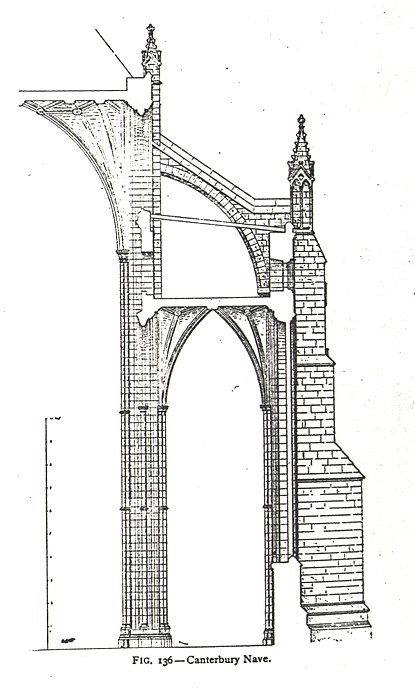

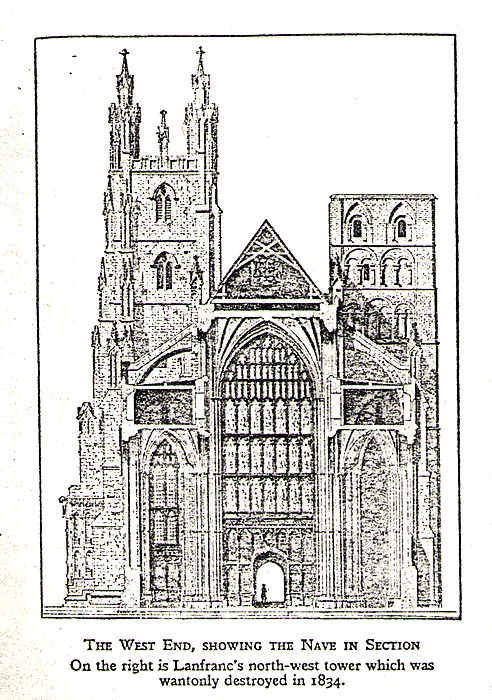

Canterbury Cathedral, Section of Nave, from Moore

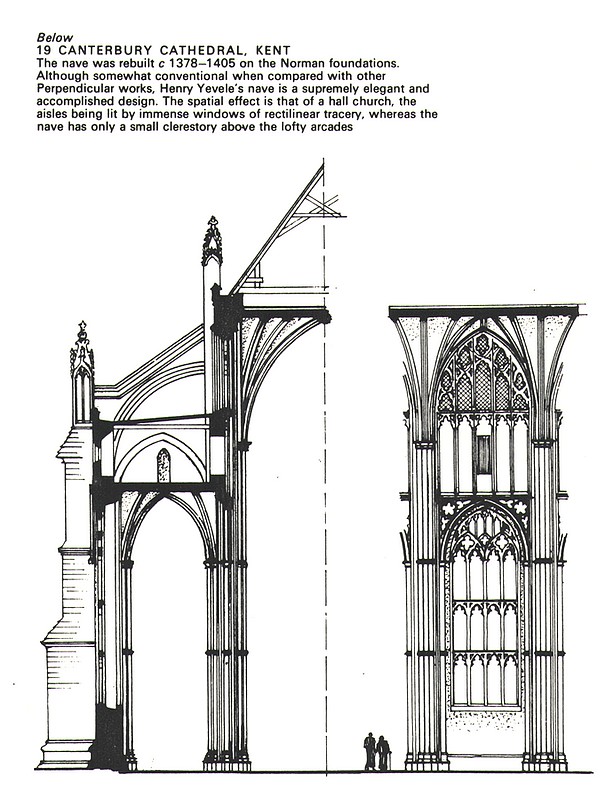

Canterbury Cathedral, Nave, from Ison
Canterbury Cathedral, Norman and Gothic design, from Willis

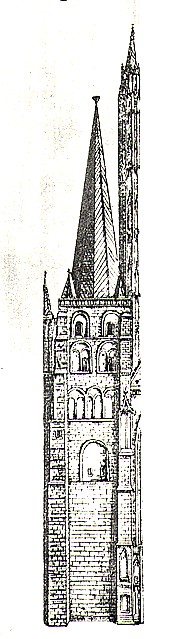

Canterbury Cathedral, NW
Tower,
see Architectural Review, 21,1907

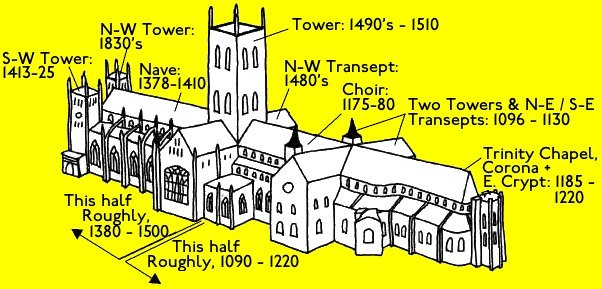

The five diagrams shown below with
description on www.drttours.co.uk/Pages/CanterburyCathedral.html
Dr Thomson's Tours: Site designed by Andrew, Ben & Joseph
Thomson.

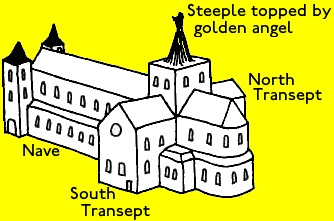

The Norman Cathedral of Archbishop Lanfranc,
Source:
drttours.co.uk

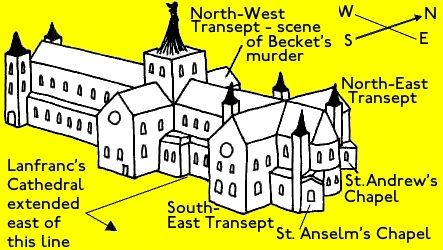

The Norman Cathedral of Archbishop Anselm,
Souirce:
drttours.co.uk

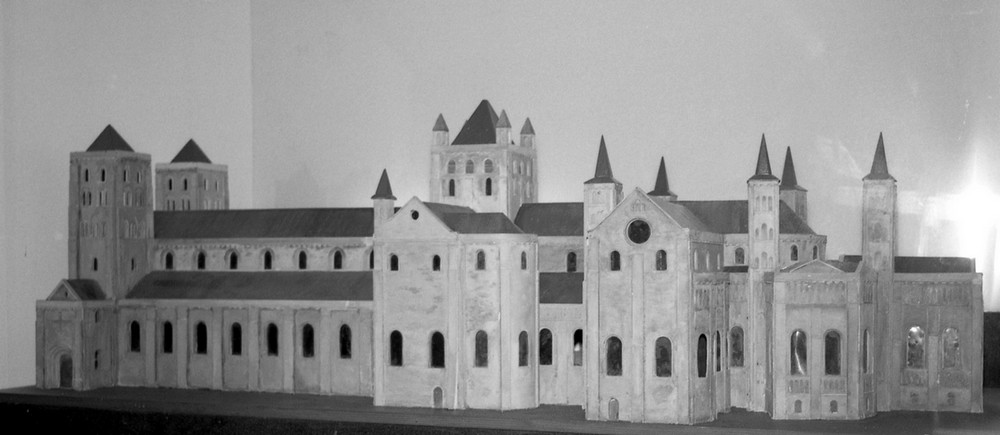

Model of a conjectural reconstruction of Canterbury Cathedral
.jpg)
Reconstruction of
Canterbury Cathedral,
by Sir Charles Archibald Nicholson (1867-1949)
Canterbury

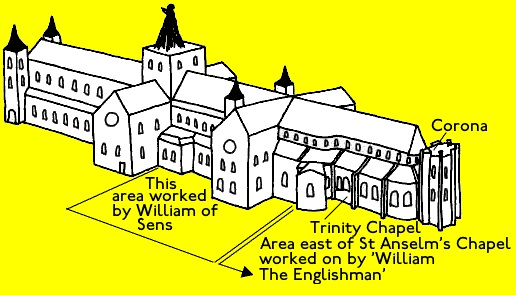

Cathedral, Rebuilding after fire of 1174 destroyed the eastern end.
Source:
drttours.co.uk

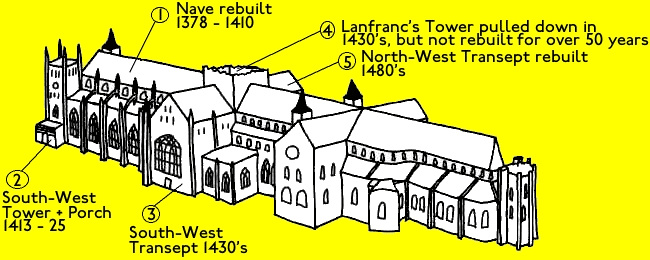

Canterbury
Cathedral, Rebuilding the Nave & main Transepts, 1377-1480.
Soiurce:
drttours.co.uk
'Bell Harry' Tower - and
an answer to the question "When was the Cathedral built?"
Source:
drttours.co.uk
Tentative reconstruction of the final phase of the Anglo-Saxon
Cathedral,
on hillside.co.uk
,%20drawn%20by%20Ivan%20Lapper,%20on%20canterburytrust.jpg)
Imaginative reconstruction of Canterbury Cathedral in the late
Anglo-Saxon period (c.1025),
drawn by Ivan Lapper, on
canterburytrust.co.uk
%20under%20Archbishop%20Lanfranc,%20drawn%20by%20Ivan%20Lapper,%20canterburytrust.co%20uk.jpg)
Imaginative reconstruction of Canterbury's Norman cathedral
(c.1077) under Archbishop Lanfranc,
drawn by Ivan Lapper, on
canterburytrust.co.uk

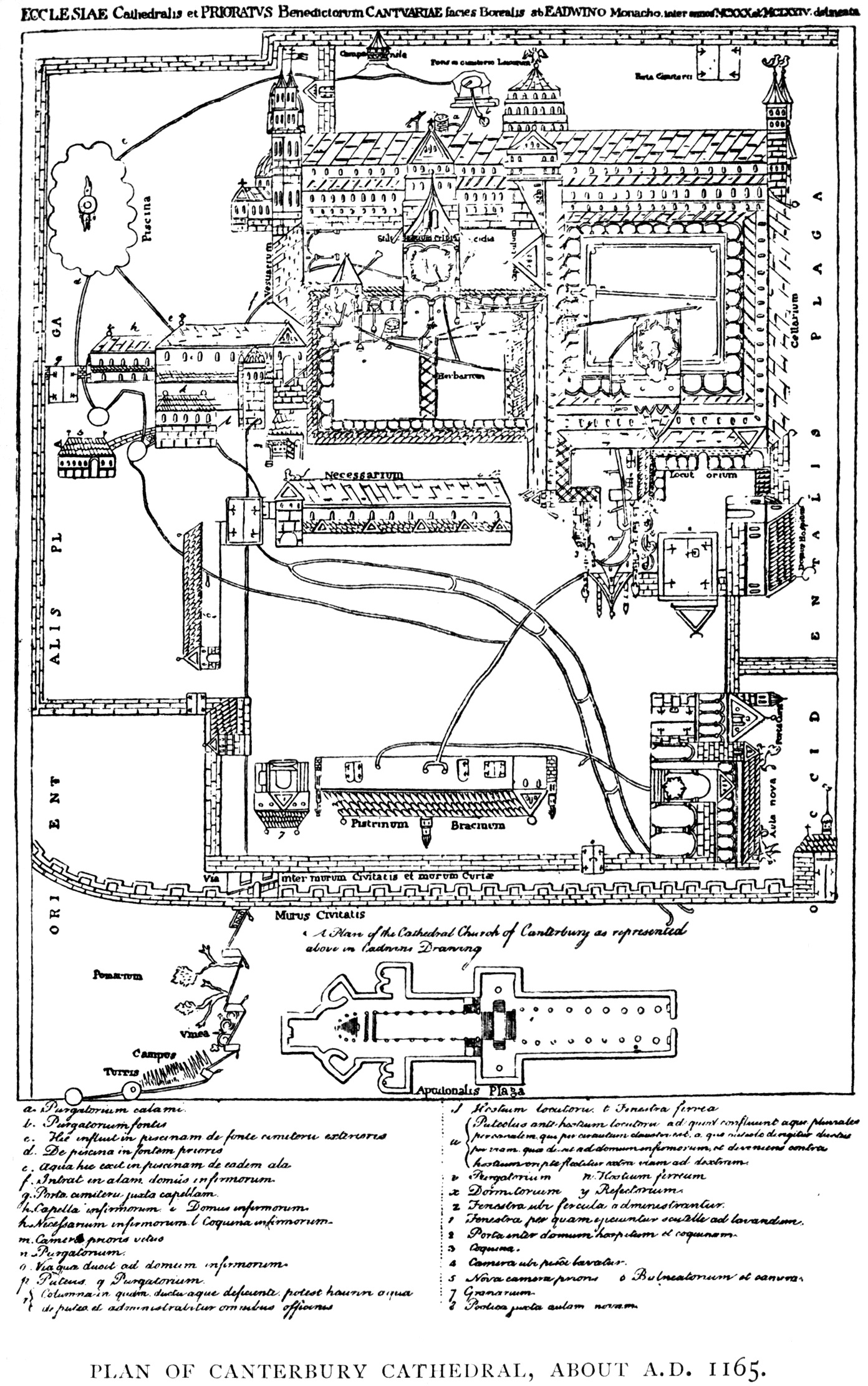

Plan of Canterbury
Cathedral, about a.d. 1165.
From a norman
drawing inserted in the great psalter of Eadwin,
in the library of Trinity College, Cambridge., on gutenberg.org
http://www.canterbury-cathedral.org/2014/02/01/the-waterworks-drawing-from-the-eadwine-pslater

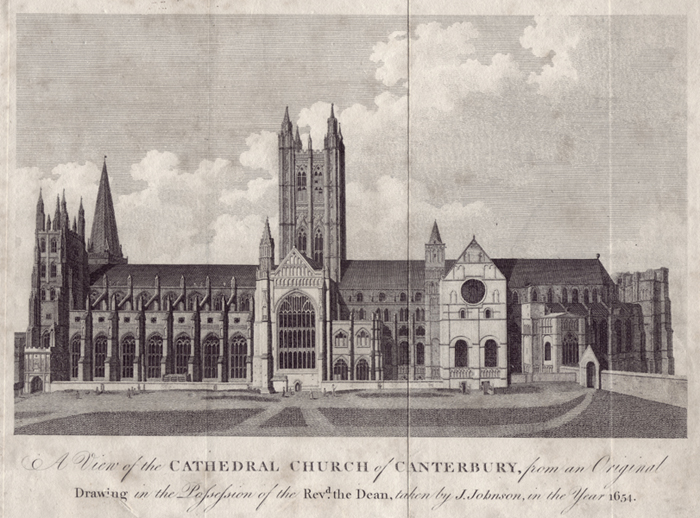

A view of the Cathedral-Church of Canterbury in Kent, J. Johnson 1654, on machadoink.com

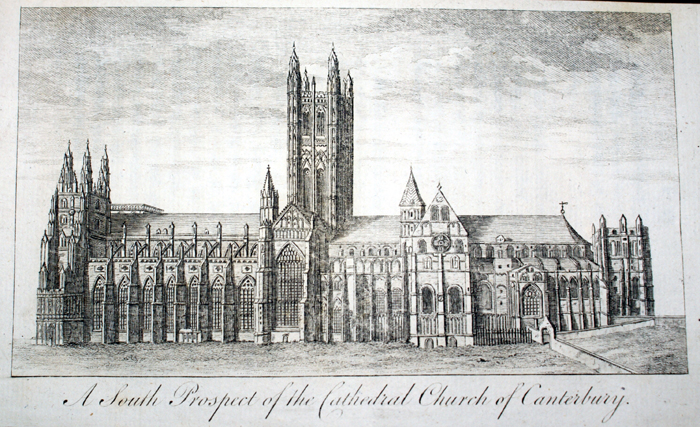

Canterbury Cathedral, William Gostling edition 1777.
.jpg)
Canterbury Cathedral, by J. Buckler,
1804,
from DUMONT, Die großen Kathedralen.
North-west tower rebuilt 1834-41.
Perspective on aznarilustrador.com
________________________________________

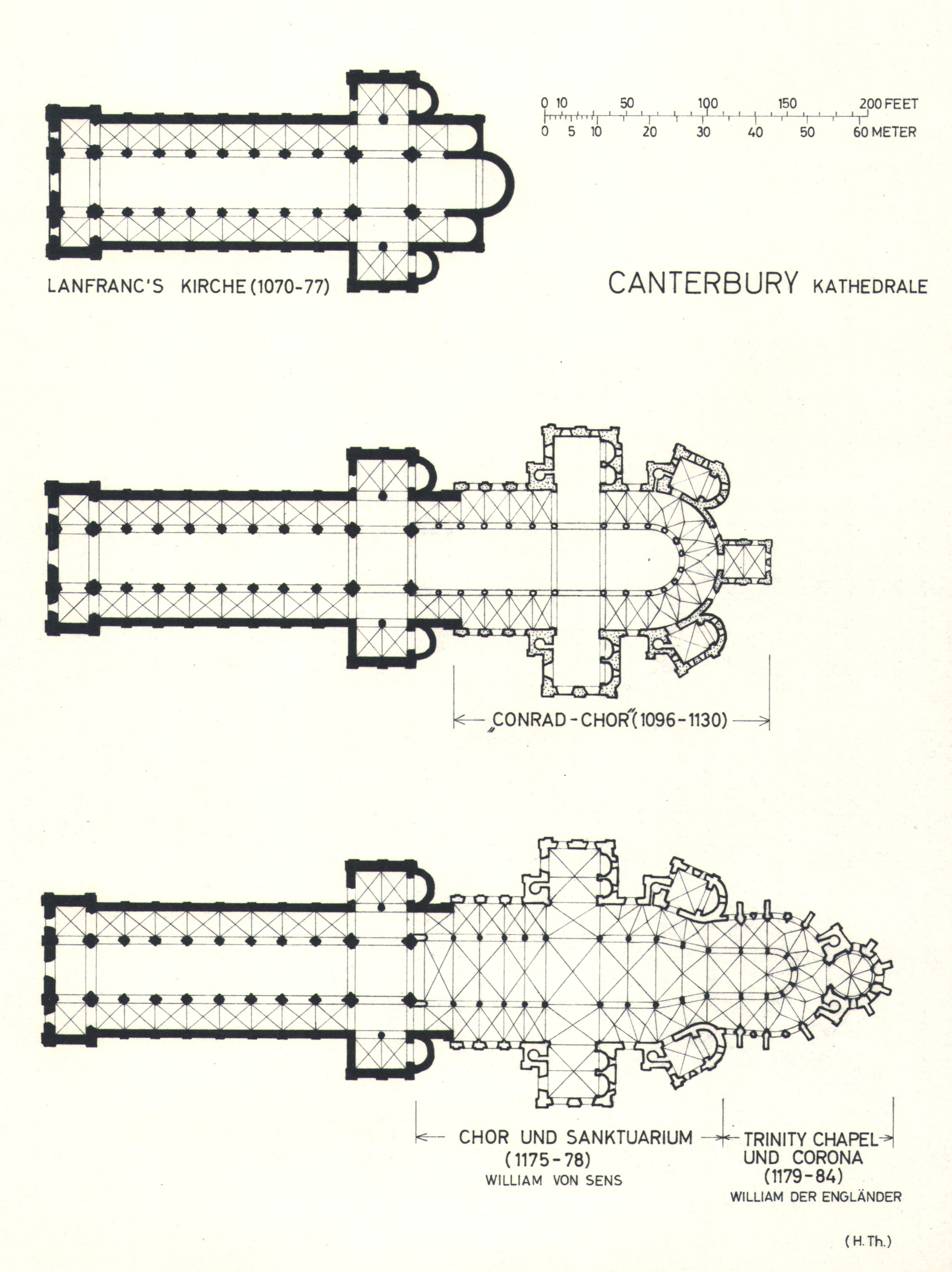

Canterbury Cathedral, Plans by Heinz Theuerkauf

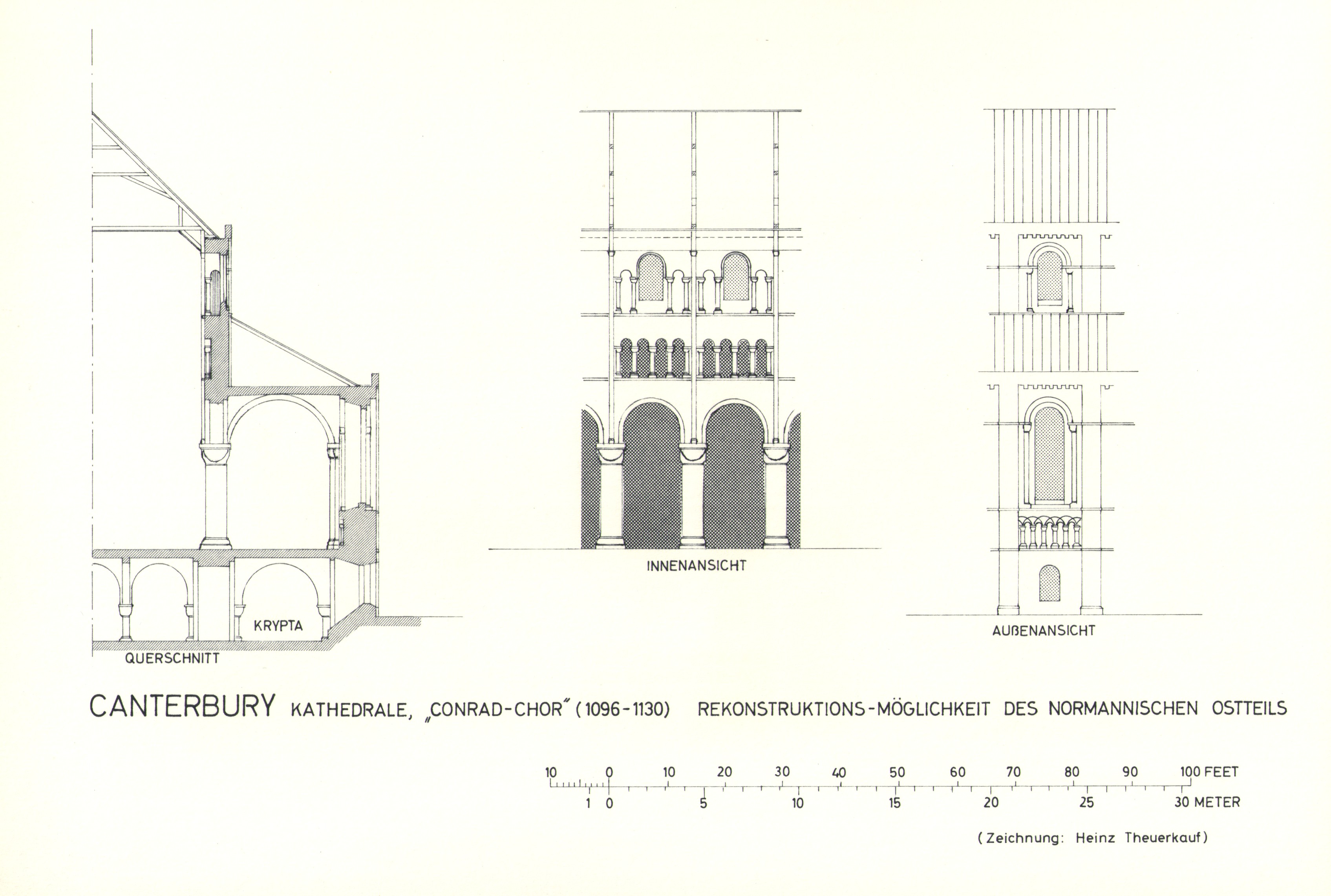

Conrad Choir
Drawing by Heinz Theuerkauf

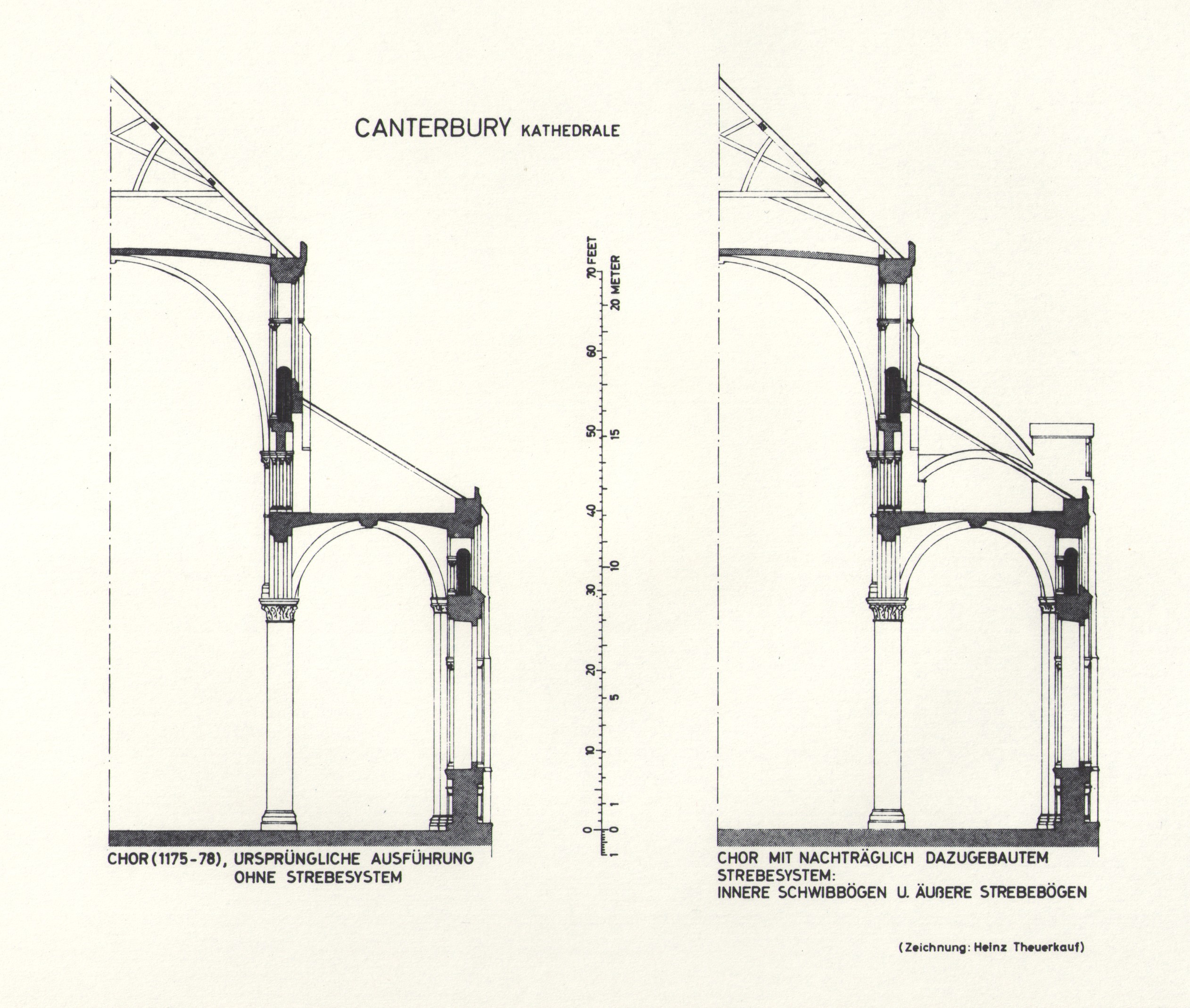

The Abutment System of the Choir is not
original but a later addition.
Drawing by Heinz Theuerkauf

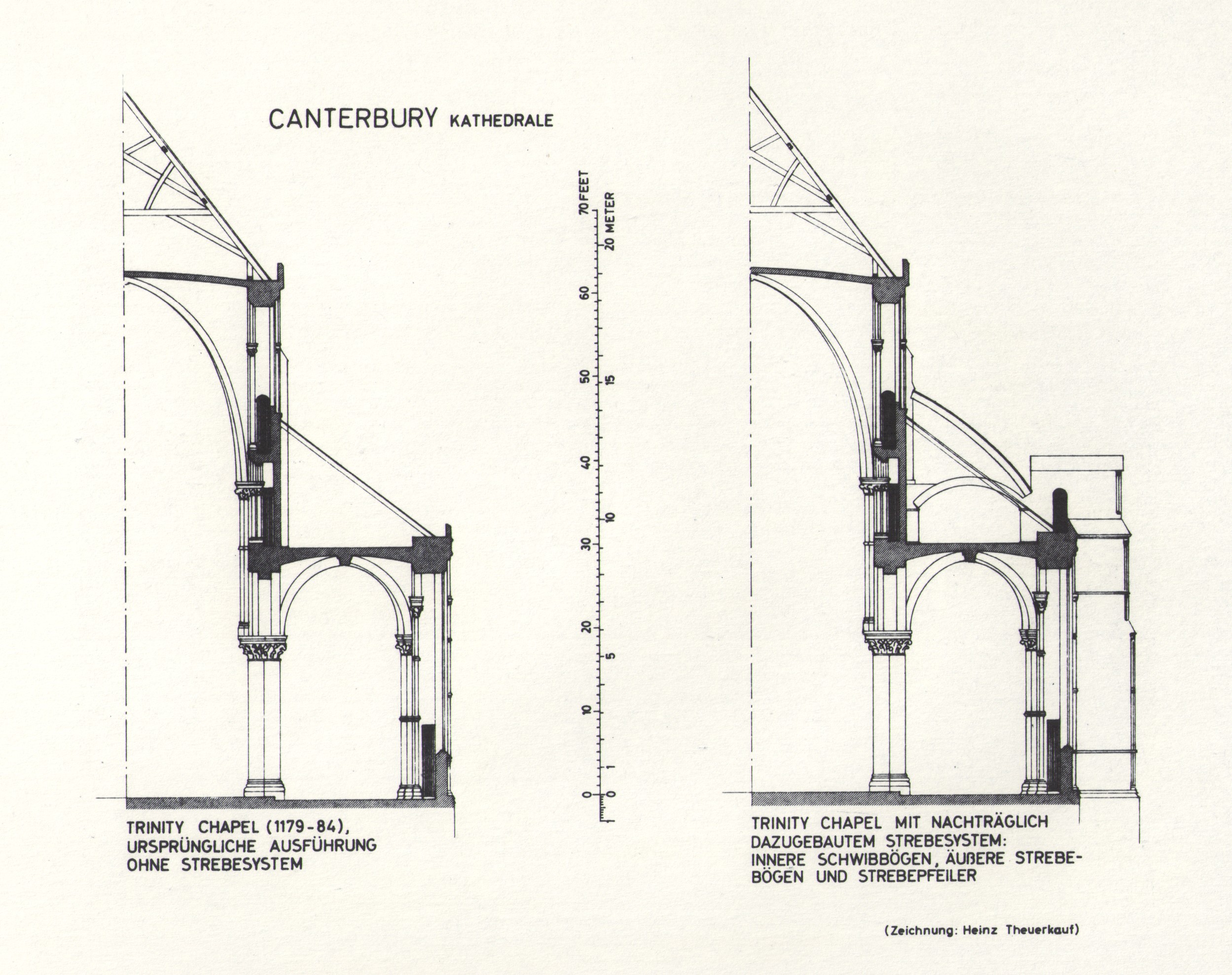

The Abutment System of the Trinity Chapel
is not original but a later addition.
Drawing by Heinz Theuerkauf

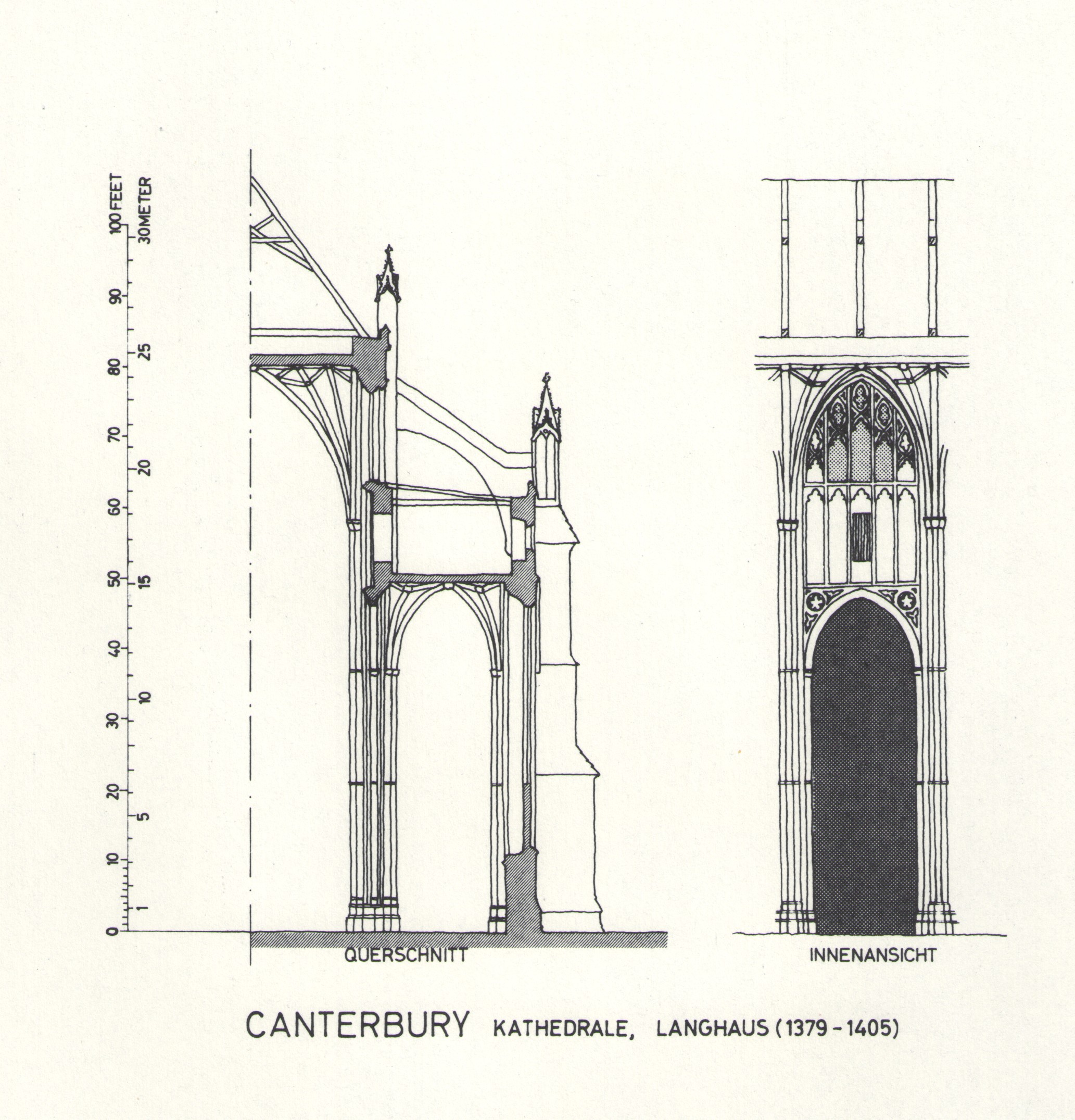

Canterbury Cathedral, Nave,
Drawing by Heinz Theuerkauf
Link >
Drawings and Photos on flickr
_______________________________________________
%20A%20History%20of%20Architecture%20on%20the%20Comparative%20Method,%20(Wikipedia).jpg)

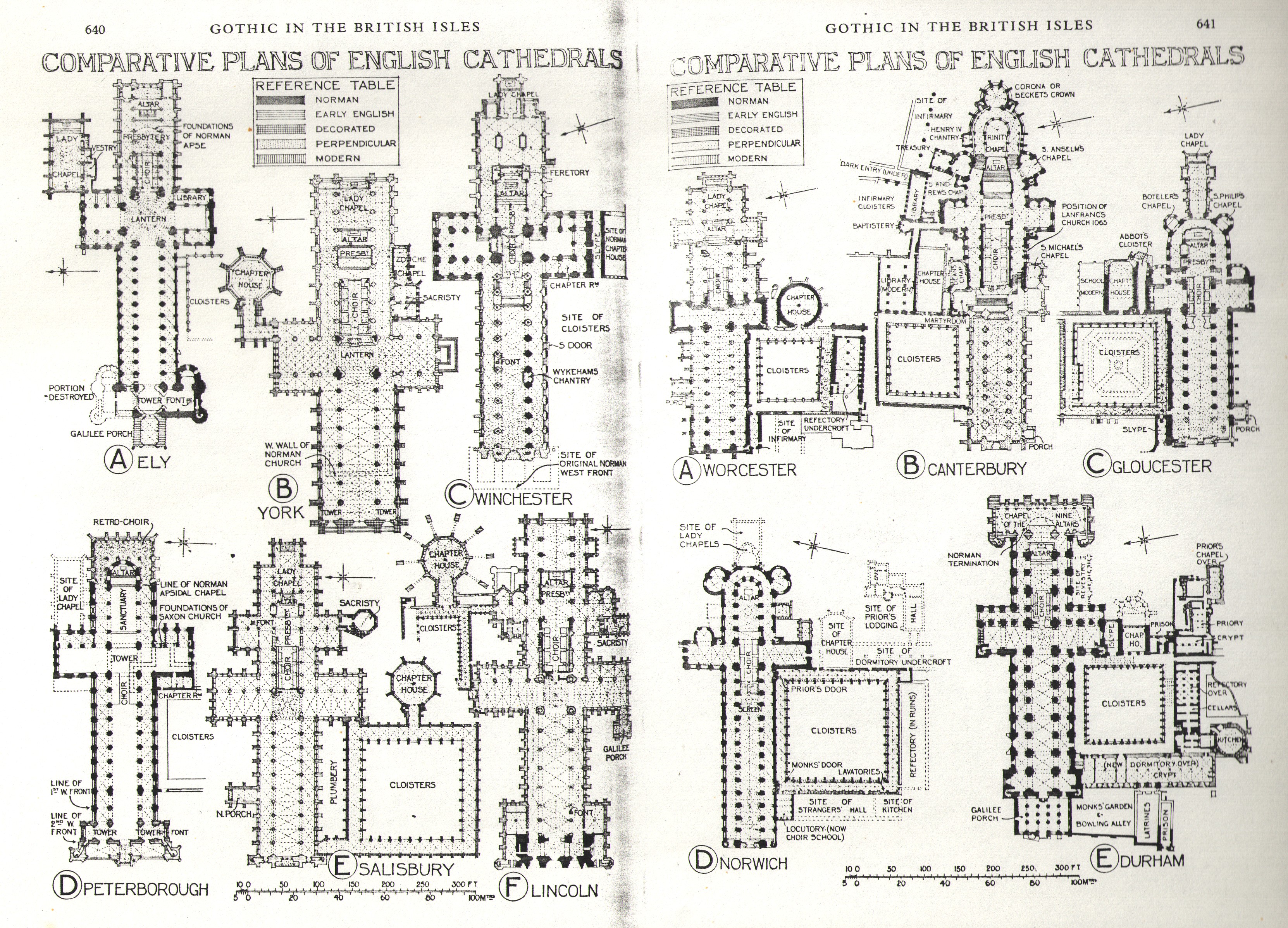

Canterbury Cathedral, Ground Plan from Fletcher, Banister (1946)
